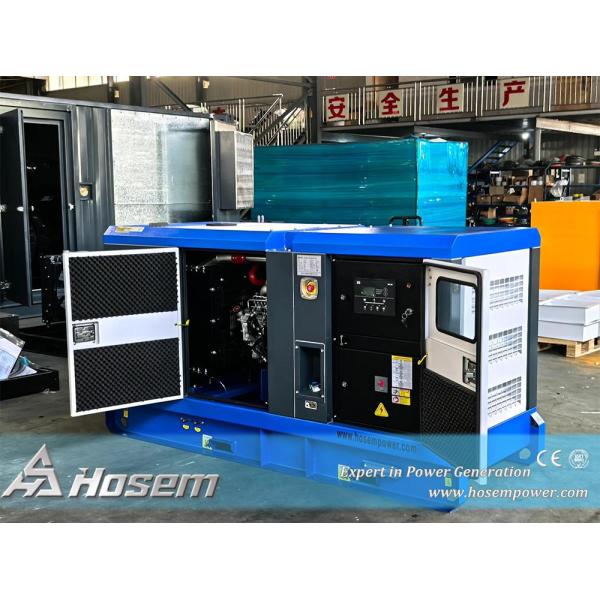

Reliable 4 cylinder diesel generator with quiet soundproof diesel generator design. High-performance Isuzu genset ensures efficient power anytime.
Product Description
| Generator Set Specification |
| Model | A-I52HS |
| Max. Power | kVA | 52 |
| kW | 41.6 |
| Rate Power | kVA | 48 |
| kW | 38.4 |
| Frequency | Hz | 60 |
| Rate Voltage | V | 220/127 |
| Rate Current | A | 126.0 |
| Dimension For Open-type Genset | mm | 1550 X 680 X 1000 |
| Weight For Open-type Genset | kg | 520 |
| Dimension For Soundproof Genset | mm | 2300 X 960 X 1200 |
| Weight For Soundproof Generator | kg | 1000 |
| Engine Specification |
| Engine Manufacturer | Isuzu Engine Co., Ltd. |
| Engine Brand | Isuzu |
| Engine Model | JE493ZLDB-01 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | | Turbocharged |
| Governor | Mechanical |
| Engine Max. Output Power | kW | 51 |
| Displacement | L | 2.8 |
| Starting Voltage | V | 12 |
| Bore | mm | 93 |
| Stroke | mm | 102 |
| Lubrication Oil Capacity | L | 5.6 |
| Alternator Specification |
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF184J |
| Alternator Brand | Hosem |
| Rate Output | kVA | 52 |
| Frequency | Hz | 60Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Voltage Regulation | AVR Model SX460 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
| Control Panel Specification |
| Controller Brand | Smartgen |
| Controller Model | HGM 6120N |
| Breaker Brand | Delixi |
| Breaker Capacity | 160A |
| Battery Charger | Supply |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. |
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. |
Product Features
1. Reliable Isuzu genset – Genuine Isuzu engine for stable and long-lasting power.
2. Efficient Isuzu diesel generator – Optimized for fuel savings and consistent 60Hz output.
3. Quiet soundproof diesel generator – Advanced enclosure minimizes noise for urban and residential use.
4. Powerful 4 cylinder diesel generator – Prime power output suitable for industrial and commercial needs.
5. Durable design – Heavy-duty frame with vibration-resistant construction.
6. Easy-to-read control panel – Clear meters and alarms for safe operation.
7. Fuel-saving performance – Efficient engine reduces fuel consumption.
8. Automatic safety features – Overload protection, low-oil shutdown, and temperature alarms.
